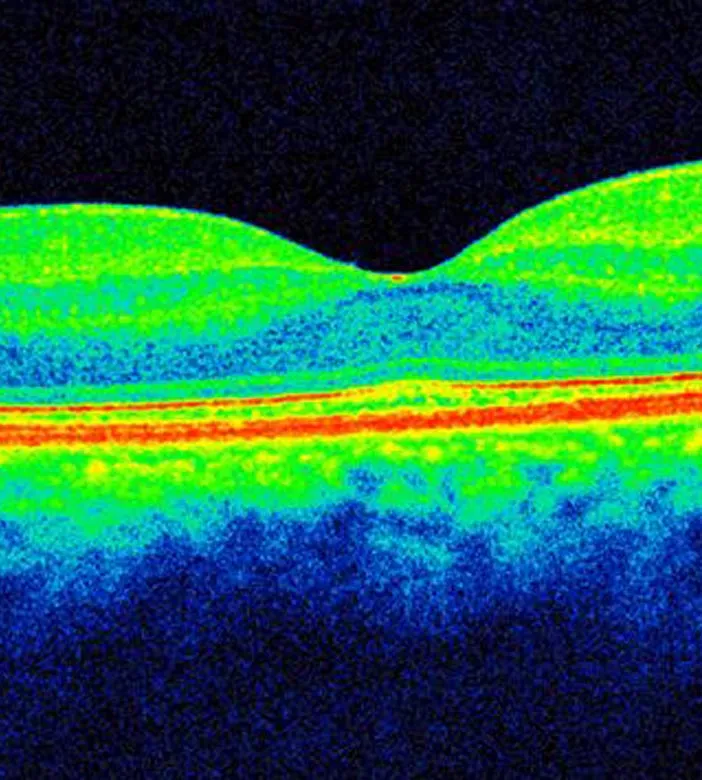

Optical Coherence Tomography (OCT) is a non-destructive imaging technique that has rapidly become a cornerstone in various fields, from medical diagnostics to industrial metrology. Originally developed for high-resolution imaging in ophthalmology, OCT has found its place in precision measurement of surfaces and internal structures in materials science, manufacturing, and metrology.
At its core, OCT uses light interference to capture high-resolution, cross-sectional images of objects without the need for physical contact. This ability to measure at the microscopic level, coupled with its non-invasive nature, makes OCT particularly valuable in industries where precision and reliability are critical. In metrology, the technique provides a unique advantage for assessing surface topography, thickness measurements, and the internal structure of materials, all while maintaining the integrity of the specimen being measured.
In this article, we will explore the principles behind Optical Coherence Tomography, its applications in advanced metrology, and how it is shaping the future of high-precision measurements.
How Optical Coherence Tomography Works
While there are several flavors to Optical Coherence Tomography, OCT is based on a principle of interferometry, where light waves are split into two beams: one directed toward the sample, and the other serving as a reference. When the light reflected from different layers of the sample meets the reference beam, an interference pattern is created. This interference provides detailed information about the sample’s internal structure.
The primary advantage of OCT over other imaging techniques is its ability to capture cross-sectional images at micrometer or even nanometer scales. By analyzing the time delay between the reference and reflected light, OCT systems can reconstruct images of the internal layers of a material, providing depth-resolved imaging of surfaces, coatings, and interfaces.
To give this a little simple explanation, you can think of light as a wave and waves have wavelength. When you trap a wave between two surfaces, only a certain set of wavelengths can reflect back and forth. These wavelengths survive and reflect back to an analyzer and can be detected. This is a very simplified picture but has the essence of the subject in it.
OCT systems generally operate in the near-infrared light range (700 to 1300 nm), which allows the light to penetrate deeper into various materials while maintaining excellent resolution.
Applications of Optical Coherence Tomography in Metrology
OCT has wide-ranging applications in advanced metrology due to its ability to provide high-resolution, non-contact measurement of surfaces and internal structures. Some key areas where OCT is applied include:
1. Surface Topography
OCT excels in measuring the surface roughness and morphology of materials with high precision. By capturing detailed images of the surface at micron and nanometer levels, it provides a unique advantage over traditional contact-based methods like stylus profilometry, especially for delicate or small-scale samples. This is particularly useful in semiconductor manufacturing and the production of high-precision optical components.
2. Coating Thickness Measurement
Measuring the thickness of thin coatings is essential in industries such as electronics, automotive, and aerospace. OCT enables accurate, non-contact thickness measurements even in multilayered coatings. The ability to measure these coatings without damaging the material is critical in maintaining the integrity of delicate structures, such as those found in microelectronics.
3. Internal Structure Imaging
One of the most compelling aspects of OCT is its ability to probe internal features of a sample. This is particularly useful for inspecting materials with layered structures or internal features that cannot be accessed by traditional surface measurement techniques. In industries like aerospace and automotive, OCT is used to inspect the inner layers of composite materials or welded joints, identifying defects or structural inconsistencies before they lead to product failure.
4. Surface Defect Detection
OCT’s high resolution allows for the detection of micro-scale defects such as cracks, voids, and inclusions beneath the surface of materials. This is invaluable for quality control, particularly in industries like aerospace, where the safety and integrity of components are of the utmost importance.
It is important to note that OCT can only pick up the signal from the surfaces that are perpendicular to the probe beam. So, for example, if you are looking at a sample that is at an oblique angle, the OCT cannot work because all the reflections from the optical surfaces are reflected at a different angle and are not being received by the analyzer.
Advantages of Optical Coherence Tomography
Optical Coherence Tomography offers several advantages over traditional metrology techniques, making it an invaluable tool in high-precision applications:
1. Non-Contact Measurement
OCT is non-invasive, meaning it does not require physical contact with the sample, avoiding the risk of damaging delicate or soft materials. This is especially important in fields such as medical device manufacturing, where the integrity of components must be preserved.
2. High Resolution
OCT is capable of achieving resolution in the micron and nanometer ranges, allowing for precise surface and internal measurements. This level of resolution is critical in industries where small deviations can lead to significant performance issues, such as in semiconductor manufacturing or optical systems.
3. Real-Time Imaging
With OCT, it is possible to obtain real-time imaging of materials as they are being manufactured or processed. This capability is beneficial for monitoring production quality and ensuring that parts meet specifications during the manufacturing process, rather than after the fact.
4. Depth-Resolved Imaging
Unlike surface-only measurement methods, OCT allows for depth-resolved imaging, providing a comprehensive view of a material’s internal structure. This is especially valuable for applications like multilayer coatings, where the internal structure is as important as the surface properties.
Limitations and Challenges
Despite its advantages, there are some limitations to OCT that should be considered:
1. Penetration Depth
The penetration depth of OCT is typically limited to a few millimeters, which makes it less effective for inspecting very thick or opaque materials. For highly scattering materials, the light may not penetrate deeply enough to provide useful imaging.
2. Cost and Complexity
While the technology behind OCT has advanced significantly, the systems can still be costly and require specialized knowledge to operate effectively. This can make it less accessible to smaller businesses or industries with limited budgets for high-end metrology equipment.
3. Material Dependence
The effectiveness of OCT can be influenced by the optical properties of the material being measured. Highly absorbing or scattering materials can pose challenges for obtaining clear and accurate images.
4. Material Dependence (Again)
As mentioned before, another limitation of the method is that the signal from the surfaces that are not perpendicular to the beam is very weak and almost zero. So we can’t learn anything about the topography of those surfaces.
